Madvac LR175

Madvac LR175

Compact Sweeper with High Dump

Products

Details:

Download:

The new Madvac® LR175 is specifically designed to address today’s urban cleaning challenges.

• Sweep litter on narrow, hard to reach areas that has various obstacles and different surface types:

Obstacles : Bus shelters, lamp posts, benches, etc,

Paving type : Asphalt, concrete, cobblestone, brick

Madvac is the ultimate sweep / vacuum / wash mobile cleaning unit.

Versatile, easy to operate, the LR175 can service shopping malls, educational and sports facilities, airports, casinos, amusement parks, seaports, military bases, industrial areas, etc. – in short, any environment that faces litter issues.

For more product details, please download the brochure

(Adobe Acrobat PDF format)

Download the family brochure

The perfect solution for all your outdoor sweeping needs.

Madvac: Built to suit your needs

• Madvac’s new modular design gives you the ability to create the perfect outdoor cleaning vehicle – specifically designed to meet your unique litter control challenges.

• Select engine type (Tier3, Tier4 or new All-Electric), hopper size (0,75, 1,75 and 2,75 cy), cabin or no cabin, wander-hose, pressure washer, tires, 2 or 4 wheel drive, operator cabin features, etc.

Create your ideal compact sweeper.

Dust control performed by water jet on each brush with no dust from the hopper due to unique Madvac RDDF System (Rotary Debris & Dust Control) ® Centrifugal 1200 RPM rotary knife pulverizing dust & litter before exhausting maximum 10 PPM

Does not require a CDL permit to operate

• Simple ergonomic controls, all-round visibility, safe to drive in crowded areas anyone can operate the LR175.

Can handle any kind of paving surface:

• Asphalt, concrete, cobblestone, brick

New & improved dust control system

The Madvac Advantage

Only compact urban cleaning unit built and serviced in North America

    Specifically designed for North American working conditions;

    Simple mechanical design;

    Robust, 10 to 12-year lifespan;

    Dealers across North America are the best outdoor cleaning expert;

    Parts shipped within 48 hours;

    Modular design to suit your needs.

Key Differentiators

Easy to Operate and Maintain

Superior handling, better stability, better curb-climbing capability.

    •  Short wheel base Turn on a Dime’ versality, speed, and strength.

    •  Higher machine clearance

    •  Simple, reliable mechanical design for less annual maintenance and repair

Efficient and Productive

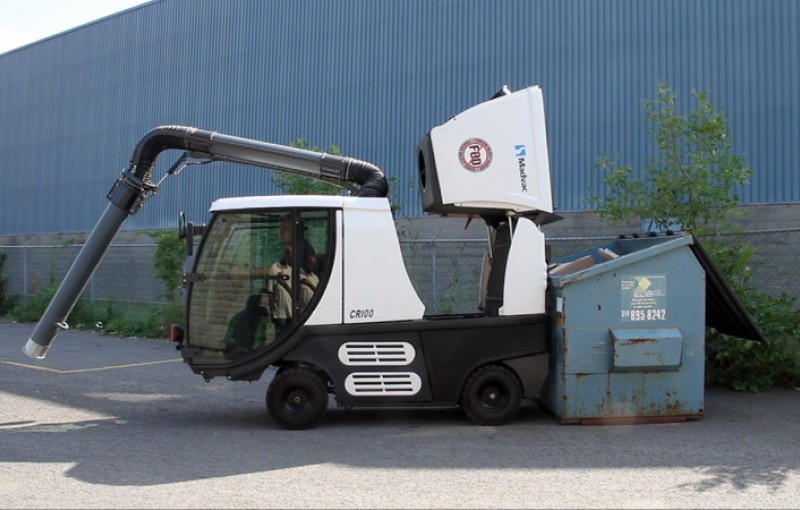

   •  High-capacity 1.75 cu. yd. (1.34 m3) stainless steel hopper with 67’’ (1702mm) hydraulic

       high-dumping height.

    •  58-gal (220L) water capacity for fewer fill-ups and longer shifts.

Lightweight, Compact and Maneuverable

     •  Low overall height of 78˝ (1981 mm) ideal for tree-lined roads and underground

        parking garages.

     •  Narrow 48” (1219 mm) width to sweep hard to reach areas.

     •  Robotic arm (6 positions in cab joy-stick) controlled by proportional hydraulic valves

Performance

     •  Vacuum power 3000+ CFM.

     •  Travel speed up to 18 Mph (30km) - working speed up to 8 Mph (13km) for clean and

         fast sweeping.

     •  Straight-through suction system.

     •  Side-mounted fan design makes it impossible for litter to jam the fan.

Visibility and Comfort

     •  270-degree cab vision & glass door

     •  Adjustable suspended air seat with 3-point seat belt

     •  Adjustable arm rest with illuminated switches

     •  Two front brushes independently controlled in cab joy-stick

     •  Single traction pedal – neutral, forward & reverse (No shifter)

     •  Full street legal lighting

Create your ideal compact sweeper

Optional features:

     •  Brush rotation & down pressure in cab adjustment

     •  15-foot wander-hose to manage hard to reach areas

     •  1500 PSI pressure washer to pulverize dirt in seconds

     •  Turf tires to handle more challenging ground surfaces

     •  All-wheel drive for safer, better control

     •  Automatic climate control for operator comfort

     •  Rear camera system for added safety in heavy pedestrian traffic areas

The perfect solution for all your outdoor cleaning needs
