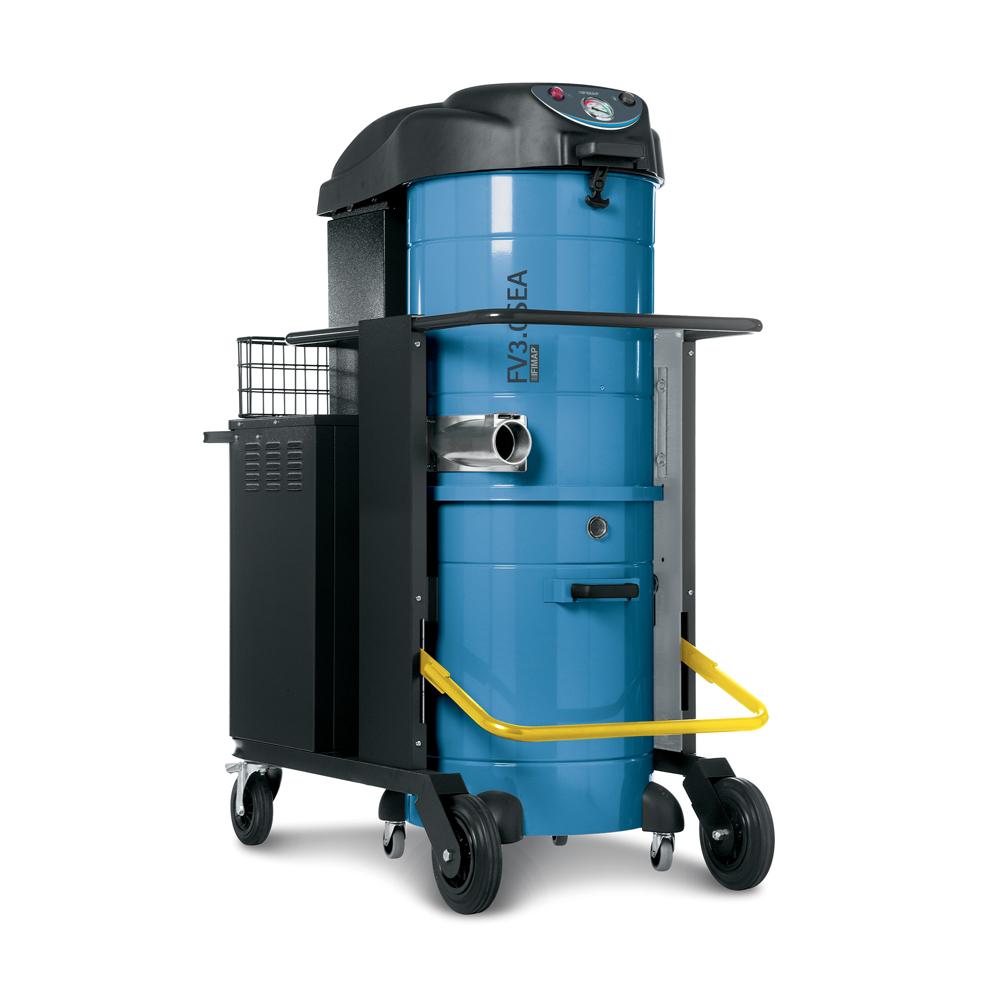

FV3.0/4.0/5.5 SEA

FV3.0/4.0/5.5 SEA

The FV3.0/4.0/5.5 SEA are extremely powerful three-phase vacuum cleaners with a turbine installed in a rear compartment. Their size makes mobility impractical, so they are best employed in environments where they can be used in fixed positions.

Designed with highly robust frames, making them extremely stable. The material vacuumed due to the cyclonic effect tends to settle on the bottom of the container, while the finer dust particles in the mix are deposited and retained on the filter surface area.

They are equipped with a particularly advanced filter cleaning system, with an automatic electrical filter-shaker. It has 2 distinct operating modes:

Automatic mode: every 20 minutes of non-stop operation, the unit automatically stops for a 20-second filter cleaning cycle. Once the cycle has been completed, the unit restarts automatically.

Manual mode: by pressing the filter-shaker button while the turbine is functioning, the turbine stops working and a 20-second filter cleaning cycle begins. Once the cycle has ended, the turbine restarts automatically.

Two operators can work with the FV5.5 version simultaneously.

Certifications

The plus factors that characterise Fimap commercial vacuum cleaners

Productivity

Detachable tank on wheels

Thanks to its ergonomic design and ease of use, the recovery tank can be easily moved about and emptied.

The filter-shaker facilitates the cleaning of the filtering element, without needing to open up the vacuum cleaner.

They are fitted with an automatic electrical filter-shaker (SEA).

When the filter-shaker is set to automatic cleaning mode, the vacuum cleaner carries out the operation autonomously, thus eliminating the need for continuous monitoring

Productivity

Mechanical float (INV30 S)

Available as an option upon request, and easy to install.

Characterised by its ease of use for vacuuming liquids. Ensures maximum reliability and safety for the operator. Interrupts vacuum at the highest level permitted, thus protecting the vacuum motor

Safety

Cyclone cone

Fundamental for reducing work times, allowing the operator to switch from vacuuming liquids to vacuuming solids, or perform both functions simultaneously (e.g. when removing processing residues where liquid refrigerants are also present)

User Friendly

Radial filter with ample filtering surface

Combined with the effective filter shaker system, the use of radial filters with ample filtering surfaces reduces work interruptions; this results in increased operator productivity.

User Friendly

Tangential inlet nozzle

Improves the vacuum quality and the lifespan of the filter, prolonging its functionality, preserving its good condition and protecting it against clogging

Designed to keep the investment value high over time

Productivity
