Sweeping machines > Ride-on > Larg

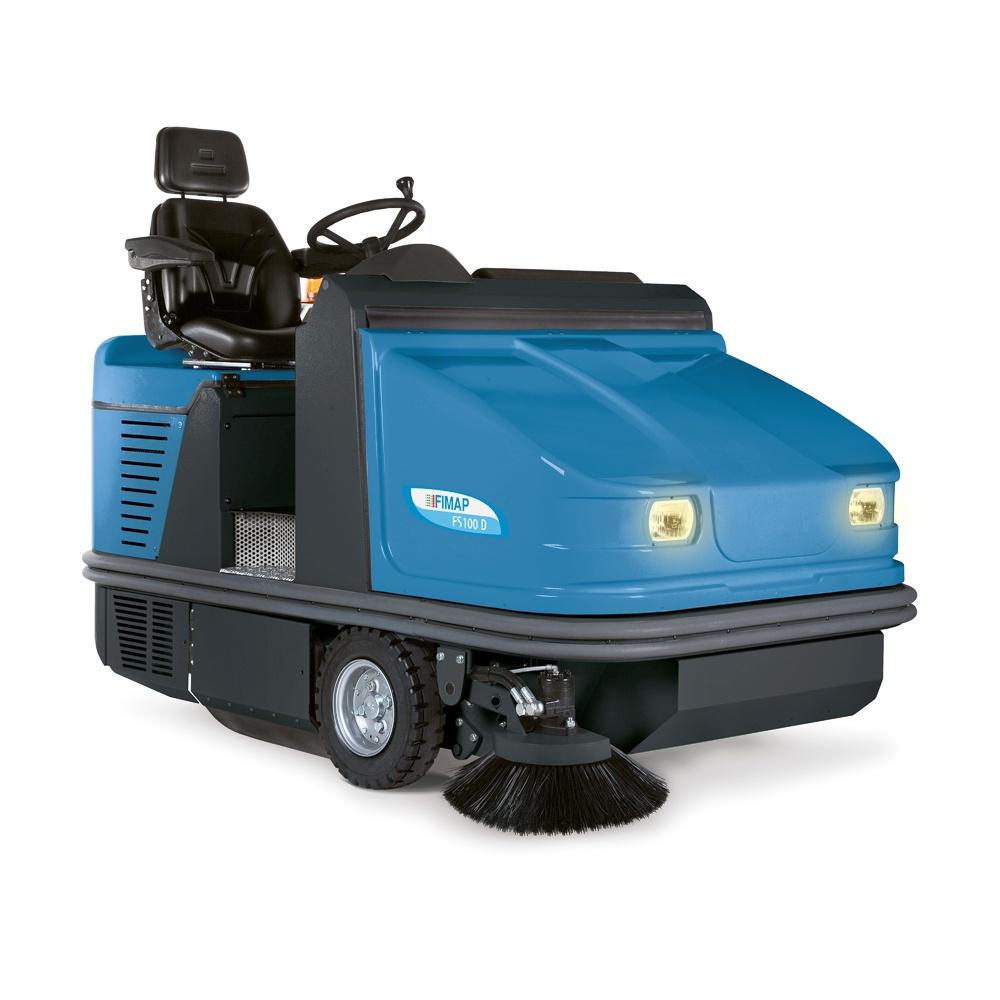

FS100 B/D
FS100-120

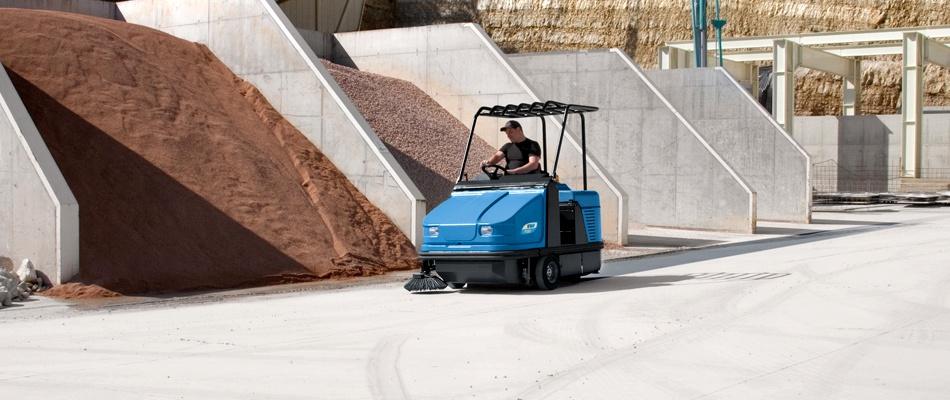

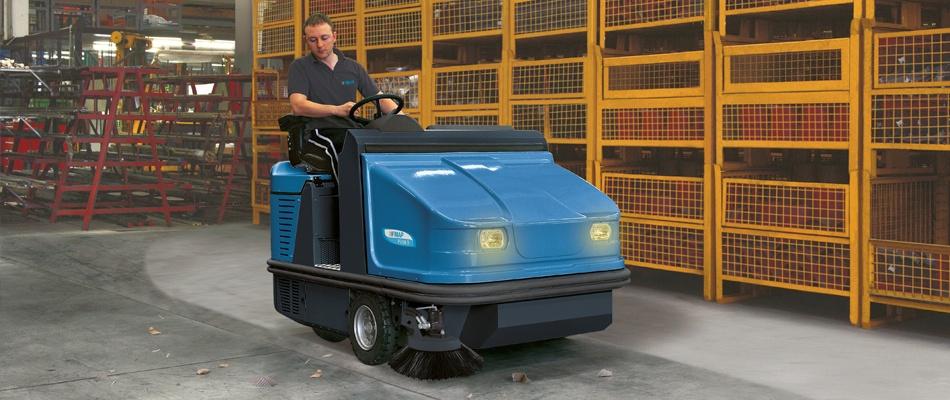

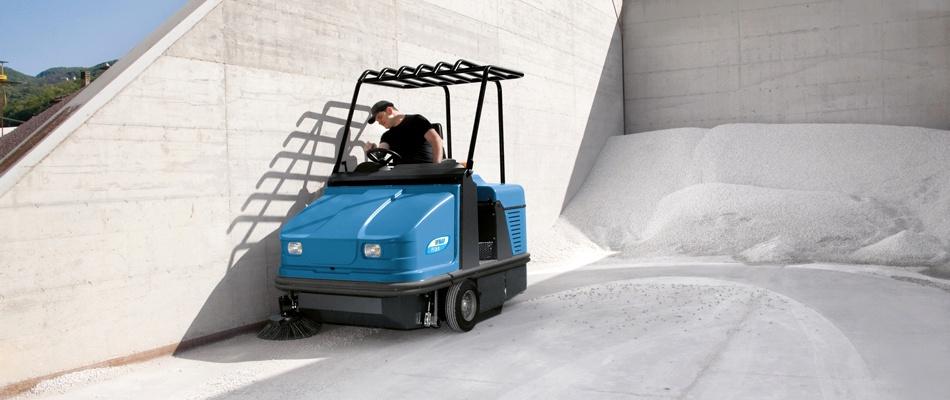

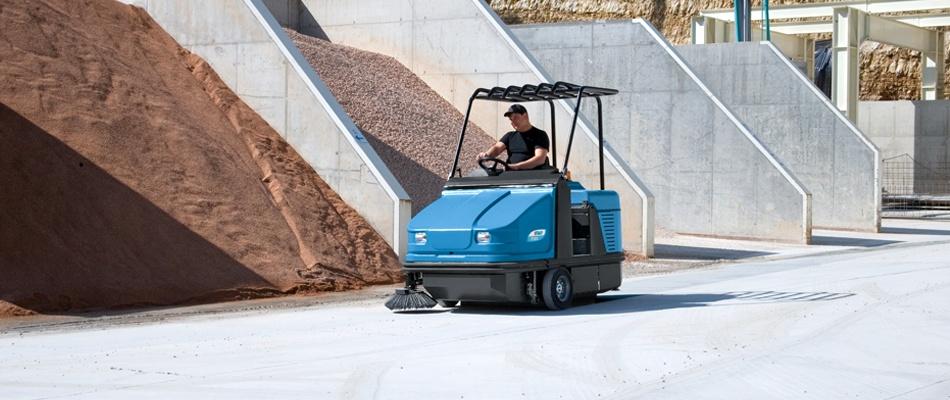

Fimap has purposely designed the FS100-120 sweeping machines to facilitate the collection of solid debris and light dusts. They are suitable for removing even the most resistant dirt from both indoor and outdoor surfaces (large warehouses, car parks and large public areas) of more than 40,000 sq.m.
The FS100-120 models are available with central brushes of two different widths:
100 and 120cm.
There is a battery version (FS100-120 B) and versions with a diesel combustion engine (FS100-120 D) or a bi-fuel combustion motor (only for the FS120 model).
These machines are the best in their class in terms of performance, power, strength and adaptability to heavy duty work loads.
A second side brush is available upon request.
DOWNLOAD
Autonomy
Energy efficiency
(w/m²)
Discover the characteristics that will help you to save
The fabric pocket filter, with its filter surface area of over 10 sq.m., is long-lasting and offers excellent results, even in environments where large amounts of fine dusts are present.
The filter is easy to remove for cleaning purposes, with no need for tools
up to 5 H

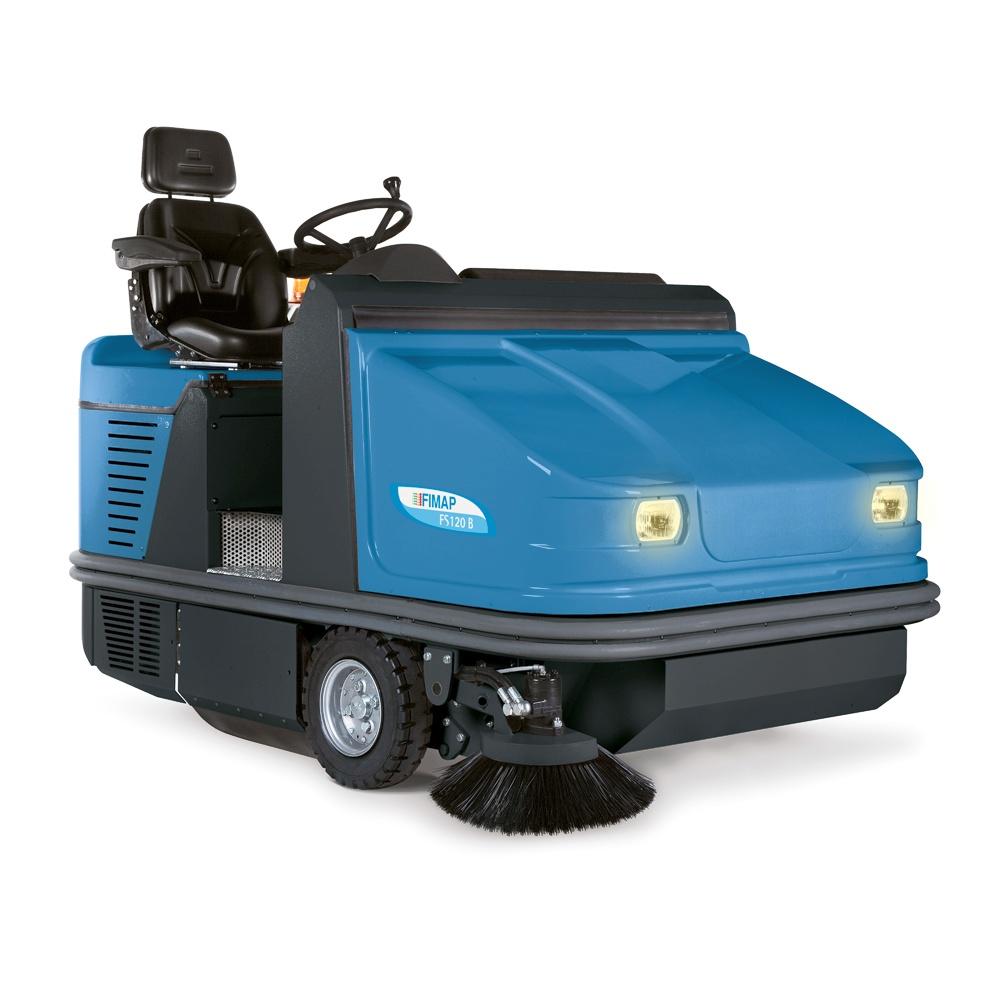

FS120 B/D/BIFUEL
Certifications
Technologies
Productivity
The frontal dirt collection container has a capacity of: 400 litres* (FS100) - 420 litres* (FS120). It is raised by a 2-piston hydraulic system, operated by a handy control on the driving position. The vacuum is activated by a hydraulic motor
The FS100-120 models are also equipped with an electrical filter shaker, directly controlled by a button on the instrument panel. This keeps the pocket filter constantly clean
Productivity
The innovative hydraulic system is designed to increase performance and reduce energy consumption by up to 35% compared with the previous model. This means improved machine autonomy - up to 4 hours (FS90 B-FS 110 B version).aThe dual gasoline/LPG fuel system allows the machine to be used with a more ecological fuel (LPG).
The installed motor, purposely designed for bi-fuel use, ensures reduced consumption and low emissions.
The work autonomy guaranteed by the two fuel tanks - gasoline 10 litres and LPG cylinders of up to Ø 32x72cm - allows continuous operation under conditions of maximum safety, even in covered areas
Productivity
Productivity
The fully openable rear lid offers complete access to the battery compartment.
The box housing the electrical control devices, and the hydraulic distributors, are centrally located so all the battery fluids can be quickly and easily inspected
Designed to keep the investment value high over time
The rear motorwheel traction makes the machine safe and manoeuvrable, ensuring an extremely tight curve radius

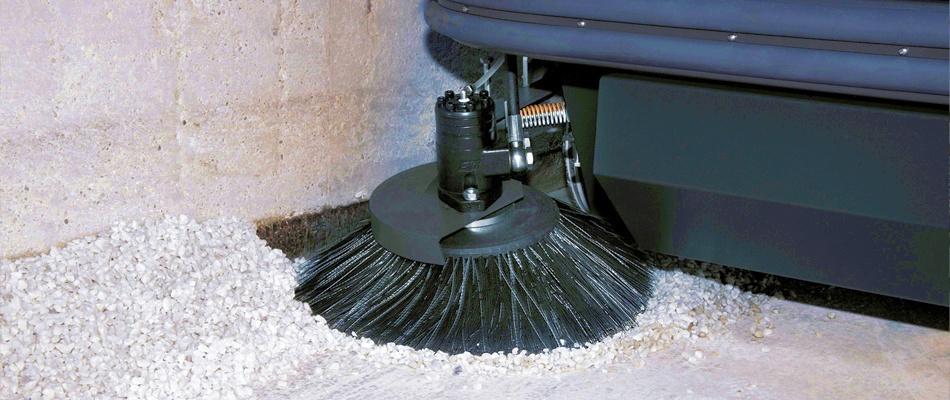

The side brush retracts in the event of accidental impacts, thus avoiding any possible damage
Safety
Productivity

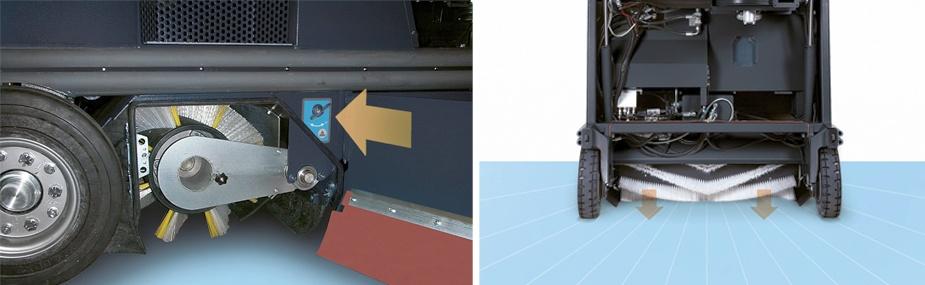

The pressure adjustment and height adjustment of the central brush are independent. A special hydraulic device maintains a constant weight on the brush.
The brush height can be quickly adjusted on the basis of its degree of wear.
This ensures a longer brush service life.
Designed to keep the investment value high over time
The optimised hydraulic system fully exploits the sweeping machine's performance while using the least possible amount of oil.
The system for maintaining the correct oil temperature (within the optimal values) increases performance yet minimises energy consumption. The combination of these two factors reduces energy consumption by 40%. As a result, the machine's autonomy is increased (up to 5 hours for the battery version)
Energy saving
The driver's seat has been tailored to the operator, and is designed to render his/her work as comfortable as possible: the steering wheel can be tilted, along with the seat back and armrests
User Friendly
The cartridge filter and radiator (equipped with a thermostat with an independent electric fan) are standard features.
These two elements guarantee the cleanliness and constant temperature of the oil - the two fundamental conditions for ensuring machine reliability and performance over time. Furthermore, they have been positioned to ensure maximum ease of maintenance
Designed to keep the investment value high over time
